When does
contraflow bicycle travel:
make sense?

John S. Allen

The word "contraflow" alarms many people. After all, cyclists on the wrong side of the road travel in an unexpected direction, appear in unexpected locations, can not read the street signs or see the signals.

Believe it or not, the road shoulder in the photo below is a designated two-way bicycle facility. Another page on this site gives more examples of such alarming contraflow facilities. Such facilities generally parallel two-way streets.

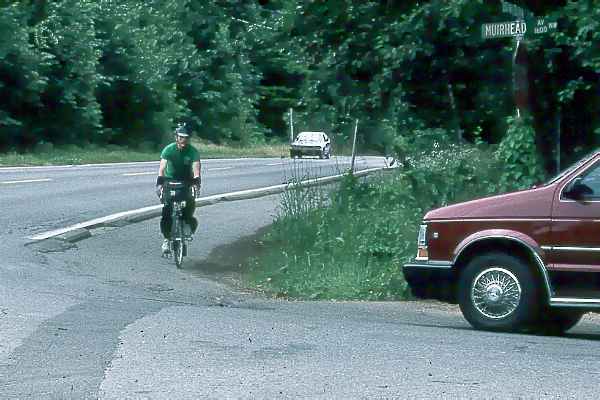

Two-way bicycle lane, Olympia, Washington, USA, 1991

9107N10R31Barrier bike lane1.jpg (31173 bytes)


It has been shown again and again that riding opposite the flow of traffic is  hazardous. But an important distinction needs to be made between two types of contraflow installations:
  • "wrong way" contraflow -- a two-way bike lane assemblage or two-way sidepath on one side of a street, like the one shown above;

  • "right way" contraflow -- a street on which the normal rules of the road apply, but only bicycles are permitted to travel in one of the two directions.

"Right-way" contraflow is fundamentally not different from a normal two-way street, but it does raise some unique issues, as we shall see -- the devil is in the details, and a blanket endorsement of such facilities is not prudent.

A street may be made one-way for any or all of three major reasons:

  • because a street is too narrow to carry two-way traffic efficiently. A street may achieve this status with increased traffic volume, with an increase in on-street parking, or with the addition of curbs which remove the opportunity to pull aside and let another vehicle get by.

  • as part of a plan for efficient traffic flow in a street grid. One-way streets reduce the number of types of turning movements at intersections and allow for more efficient traffic flow and signal timing. A contraflow installation may, however, reduce these benefits to some degree .

  • as a form of cheap traffic calming with the intention of keeping through traffic off local streets by making it difficult or impossible to use them for through travel.

Bicycles are generally slower than motor vehicles, and bicycle trips tend to be shorter than motorized trips. For these reasons, a round-about route imposed by a one-way street is generally a greater inconvenience to cyclists than to motorists, and contraflow installations are of particular interest on one-way local streets in urban areas. A "right-way" contraflow installation may provide a link in an important and useful route which has been denied by the one-way street. The following example is of just such an installation.

London, England: a "right way" contraflow installation

Consider a two-way street like any other street, except that motor vehicles are prohibited from traveling in one direction. Bicyclists travel on the correct side of the roadway in one direction; bicycles and other traffic, on the correct side in the other direction.

The next pair of photos below shows an example of such an installation in London, England which uses a designated bicycle lane.

Alan Forkosh, who took these photos, describes them:

These pictures from the Boltons portion of South Kensington show how a bicycle-only center turn lane and a half-block contraflow bike lane allow bicyclists to negotiate a thru-route across a neighborhood, while keeping that route unavailable to motor vehicles. In order to discourage auto traffic on residential streets in this part of London, streets are signed as one-way for a block. In this case, allowing bike to cross this jog, while keeping it one-way for autos allows bike traversal while keeping the neighborhood quiet. Note that that there is no parking in the contraflow area.

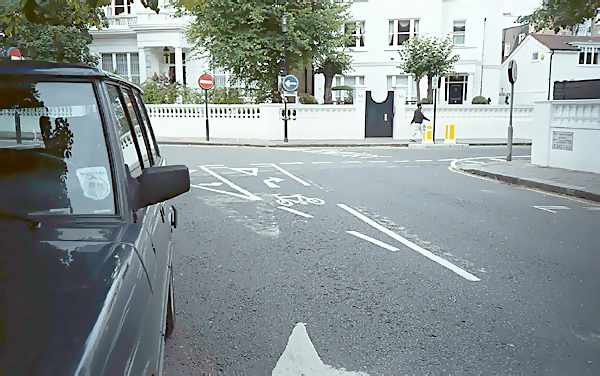

The first photo shows the intersection which leads up to the contraflow lane. Remember, in England, traffic keeps to the left side of the street -- the vehicle in the foreground is parked facing oncoming traffic (though Alan Forkosh informs me that is legal in the location shown). The right-turn bike lane in the center of the street channels bicyclists toward the two low posts with yellow markings at the far side of the intersection. This right-turn lane appears to direct bicycle traffic in the "wrong" direction -- the street that comes in from the right side in the picture is one-way from right to left. However, it is two-way for bicycles.


No 8sm.jpg (32988 bytes)

Alan Forkosh

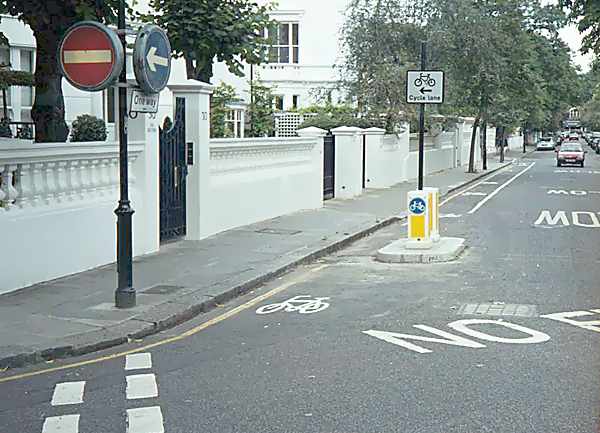

In the next photo, we look down that street past the two posts. Bicyclists are channeled here into a contraflow bike lane. The bike lane is in the normal location, on the left side of the street relative to oncoming traffic. Every feature of this treatment anticipates normal vehicular movements, by bicyclists as well as motorists. There is only one location at which vehicular traffic may cross the bike lane: a driveway (just behind the yellow posts in the photo).

No 9sm.jpg (39311 bytes)

Alan Forkosh


Still, there are a few peculiarities and problems with this installation. The short median barrier, intended to discourage cyclists from cutting the corner, leaves a channel too narrow for a cargo tricycle or trailer. These would have to pass to the right of the barrier.

One potential problem with a contraflow lane is that it places cyclists in close proximity to opposite-direction traffic, making it harder to avoid collisions with vehicles that fail to yield when turning. For example, the red car headed toward the camera in the photo above might make a right turn into the driveway, the equivalent of a left turn in countries where traffic keeps right.

Cyclists can normally negotiate with overtaking motorists and merge toward the center of the roadway to get past slower cyclists or obstructions. But a contraflow lane would require merging into oncoming traffic. That can't be done: it is necessary to wait for a long gap, as when overtaking on any two-lane, two-way roadway. Possibly in an attempt to mitigate conflicts with oncoming traffic, the striping in the London installation defines the bike lane as narrower than the space occupied by parked vehicles in the next block (in the background in the photo). But the travel lane for oncoming traffic is rather wide. A painted median (a "gore") and/or a wider contraflow lane would direct motorists to stay farther away from the cyclists and allow cyclists to overtake without encroaching into the oncoming lane.

The London installation largely avoids one serious conceptual problem with contraflow lanes -- cyclists' taking unexpected routes across intersections. Let's look at the first photo of the London installation again in connection with this problem.


No 8sm.jpg (32988 bytes)

Alan Forkosh


Drivers entering the intersection from the street at the right rear of the photo (the street with the contraflow lane) have to be on the lookout for left-turning motor vehicles entering from the same direction as the right-turning cyclists. But drivers crossing from the left rear to the right front in the photo might not expect cyclists to be turning from their special right-turn lane into the contraflow lane. The cyclists are required to yield, removing the burden of responsibility from the drivers -- note the yield triangle painted on the roadway. There is nothing special about yielding here: turning traffic normally yields to other traffic.

Drivers exiting the driveway in the London installation might forget to look to the right for cyclists -- all other traffic on the roadway comes from the left. Pedestrians also might forget to look to the right.

At the exit of the contraflow lane at its far end, there is no potential for confusion by vehicle operators, because the bicycle traffic goes left around a corner without crossing a lane of traffic (same as a right turn in countries where traffic keeps right).

Potential conflicts at an intersection

The London installation gives some examples of how cyclists can sometimes appear from unexpected directions. The illustration below gives more examples. (We return here to right-side driving.).

If the intersection is not signalized, cyclists a, b and c, who are turning left, would normally yield to all other traffic in the intersection. Whether cyclist d, going straight across, would yield depends on the assignment of priority at this intersection.

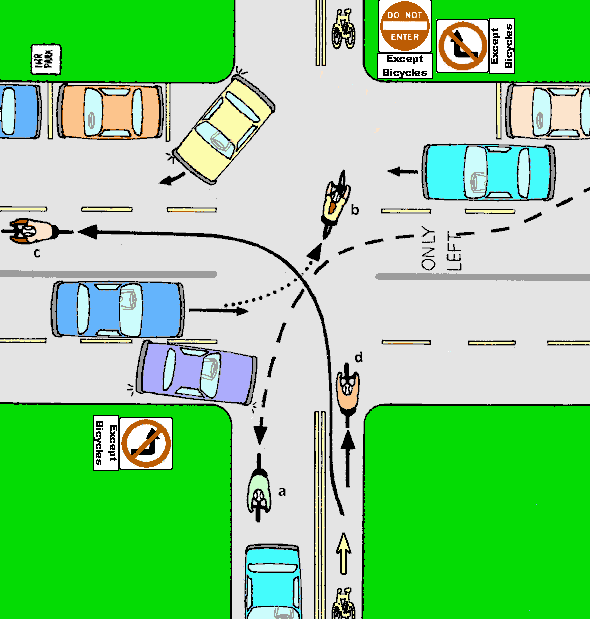

Potential confusion with a contraflow bike lane. All of the cyclists are operating
according to the normal vehicular rules of the road, but cyclists b, c and d,
entering, leaving and crossing in the contraflow lane, come from unexpected
directions if drivers assume that the street with the contraflow lane
is an ordinary one-way street.



The illustration shows what is nearly a "worst-case" situation -- a contraflow lane on a minor street, crossing a multilane street. Typically, a stop sign would require traffic on the minor street -- including cyclist d -- to yield,  but note the "multiple threat" to the left of cyclist d, where a turning car hides a car that is going straight through. The cyclist must be aware of the possibility that one vehicle hides another. If the traffic on the multilane street is heavy -- as is usual --  cyclists may have few opportunities to cross safely, and such hazards are likely.

Such problems are inherent wherever a minor street crosses a multilane arterial, but the problems are worse when cyclists appear from an unexpected direction. As an alternative to the contraflow lane, bicycle travel on a larger street with an intersection that would in any case be signalized would avoid these problems, though it might not be as direct to certain destinations, or as pleasant.

However, if a reduction of efficiency of travel on the arterial is acceptable, then signalization on the minor-street contraflow route can reduce hazards. Especially if  traffic in the street with the contraflow lane is light, then the signals are best controlled by bicycle-sensitive actuators, in order to avoid unnecessary delay either to the cyclists or to other traffic. And of course, the cyclists must obey the signals if the signals are to be effective. If delays are too great, then compliance with the signals becomes less likely.

A barrier-separated contraflow lane on a major arterial

University Avenue, in Madison, Wisconsin, USA is a major arterial street that was made one-way in the interest of more efficient traffic flow. Johnson Street, one block to the south, serves traffic in the other direction. But University Avenue bisects the campus of the University of Wisconsin, which has over 40,000 students. University Avenue therefore carries large numbers of cyclists who are making short trips. The resulting temptation to travel opposite traffic was mitigated by installation of a contraflow bike lane, visible at the left side of the photo below. This lane was originally a contraflow bus lane. When it was made into a bike lane, the eastbound bus route was moved over to Johnson Street. University Avenue may be described as a two-way divided street with eastbound traffic restricted to bicycles only.

The intersections on University Avenue are signalized. Signage for streets crossing University Avenue typically indicates turn restrictions with exceptions for bicyclists, rather than to use one-way signs.

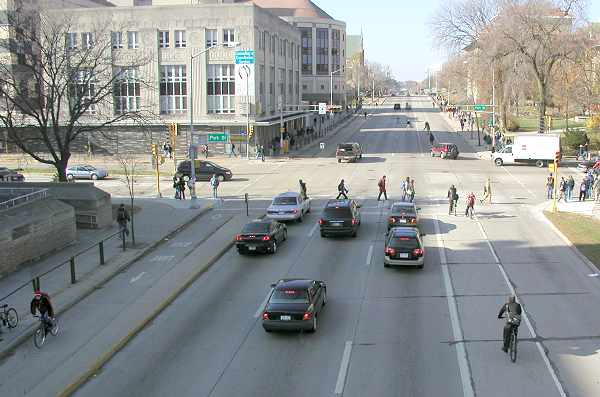

Contraflow bike lane (left side of photo) on University Avenue,
Madison, Wisconsin, USA. For "right-way" bicycle traffic, University Avenue
has a bike lane to the left of a bus lane (right side of photo).


Ann Freiwald,
Schreiber Anderson Associates


Arthur Ross, Pedestrian-Bicycle Coordinator for the City of Madison and a League of American Bicyclists Cycling Instructor, has explained the contraflow lane this way:

We have a few crashes here every year, mostly with left-turning motorists, but all in all it is far better than the situation might be if University Avenue were not two-way for bicyclists. Few bicyclists would likely go over to the next street while making a short trip, and thus we would likely have more problems with bicyclists using the sidewalks on University Avenue or riding the wrong way in the street. Bicyclists were involved in the design of University Avenue and they were insistent on inclusion of the "right way" contraflow bicycle lane.

League Cycling Instructor Judy Murphy attended the Bicycle Education Leaders Conference in Madison in the spring of 2002, and has the following comments about the contraflow lane:

Mike Rewey (Systems Planning Chief, District 1, Wisconsin DOT) and I went on a post-conference tour. (Thanks, Mike!) Mike's a 15-year commuter...The enclosed contraflow lane did have some debris, fortunately not of the tire-flattening variety. I had no problem with oncoming motorists' waiting for me to go straight in the contra-flow lane. However, every time I rode the contraflow lane I met one or more wrong-way bicyclists. Mike and I, riding side by side and chatting, blocked one young woman's way. He told her, more or less, "Stop, I want to talk to you. This is a one-way bike lane..." Bicyclists wanting to make a left turn, not having learned how to make a vehicular left turn, simply ride against traffic in the contra-flow lane. Other cyclists seeing me coming simply rode onto the sidewalk. One, seeing Mike and me coming, switched to the correct bike lane.

Rewey adds the comment:

The contraflow works best during rush. You can get all green lights. During other times you can only get one or two greens at a time.

Rewey's comment makes it clear that attention has been paid to the effect of signal timing on the contraflow bicycle traffic. The signal timing for motorists and cyclists becomes more compatible when motor traffic is slow. However, no signal timing can be optimal for all cyclists, as typical bicycle travel speeds on level ground cover a 3-to-1 range. The greatest throughput of motor traffic (most vehicles passing a given point within a given time period) is achieved at a travel speed of 22 miles per hour (35 km/h) and this is approximately the speed of the fastest cyclists.

I add a few thoughts about the important advantages of the University Avenue contraflow lane, as well as some of the practical difficulties with it:

Because the lane is a contraflow lane, the barrier serves the same function as an ordinary median strip. The contraflow lane does not require any nonstandard traffic movements, and it is wide enough that cyclists can overtake one another without the risk of toppling over the curb on either side. The Herald Square, New York City barrier bike lane provides a contrasting example.

In the photo, note the fence which has been erected to prevent pedestrians from straying into the contraflow lane. Alan Forkosh comments that

The lane can produce some problems for pedestrians. When I was in Madison for an LAW rally in 1985, I almost was clipped by a bicyclist when I started to cross University without realizing that traffic would be coming from the left. I noticed that for contraflow bus lanes in Paris, France, there are signs and street painting to make pedestrians aware of the problem.

Pedestrians' failure to notice cyclists does not reflect any conflict between the design of the lane and traffic theory; rather, it reflects pedestrians' not taking bicycle traffic as seriously as motor traffic. In some places, there is a fence on both sides of University Avenue to restrict pedestrian movements.

Debris is a problem with any barrier-separated lane, but this lane is wide enough for standard-width vehicles, including street sweepers.

The University Avenue lane also is wide enough for a standard snowplow. It is plowed, sanded and salted in winter. Still, pounding by motor vehicle wheels greatly accelerates snow clearance, and this pounding does not occur in a barrier-separated lane. The lane is also on the shaded side of the street. But there was no choice in this matter -- and not only because of the pre-existing bus lane. Ross describes the issues at hand:

There is never a choice on which side of the street to place a "right way" contraflow lane -- it has to put bicyclists on the correct side for their direction of travel. There could be a choice of which direction the motor vehicle traffic will be traveling on a one-way street, but that can be much more complicated to achieve, especially on a major street like University Ave., impacting other streets in a much larger area.  Basically, University Ave and Johnson Street operate as a one-way pair "right way" with westbound traffic using University Ave to the north, and eastbound traffic using Johnson Street to the south. The "right way" pairing of these one-way streets is necessary to match into two-way streets at either end of the pair.

Ross has also made the point that Madison's facilities have to be understood in their historical and political context, and I think that is a valid point. The Madison and Wisconsin D.O.T. engineers are themselves cyclists, they are serious readers of and contributors to the research literature, and they look for solutions which are relatively conservative while also being innovative where necessary. As to the problem with the wrong-way and sidewalk cyclists, the contraflow lane effected an improvement, but the $64,000 question in a university town like Madison is how to get bicycling education to the students.

Germany: contraflow without special lanes

germany1.gif (169 bytes)The following material (inside the border) is a translation of a page in German on the Web site of the Allgemeiner deutscher Fahrrad-Club (German Cycling Federation ADFC).


More rights for cyclists

Against the flow of traffic: one-way streets

Revisions in the traffic law make it possible for communities to post an additional sign to open one-way streets to cyclists traveling in both directions. Cyclists can then take shortcuts without violating the law -- but only when the "Radfahrer frei" sign is present.
The contraflow travel is safe. Why? Even contraflow bicyclists must obey the traffic law: keep right and observe the right-of-way rules.
In Bremen, Saarbrücken and a few other cities, the one-way streets with contraflow bicycle traffic have already proven themselves. Despite all misgivings, there have been no crashes resulting from the streets' being open to contraflow bicycle traffic. The results in the test phase, which lasted more than three years, were positive, and so the change in the traffic law was made permanent as of the beginning of the year 2001.



The German opening of one-way streets to contraflow bicycle traffic is probably the most extensive anywhere. There is another page from  the ADFC site (now available in English) which goes into more technical detail. A reading of the research documents cited in that page would provide more detail yet, and the opportunity for an independent evaluation. One of these documents, an important summary of research, is now available in English.

German law specifically permits cyclists to use as much of the roadway as is needed to avoid the hazards of parked cars. There are no designated bike lanes in these installations except on arterial streets. In the case of narrow streets, there will necessarily be head-on conflicts. The Germans appear to choose and enforce low speed limits consistent with the available roadway width.

"Right-way" contraflow with "wrong way" parking

Contraflow bicycle travel adjacent to "wrong-way" parking apparently exists in some of the German installations, if I read the ADFC pages correctly. It has been formalized in the USA in Cambridge, Massachusetts; Berkeley, California; and perhaps other locations.

All of the Cambridge installations use bike lanes. One Cambridge installation is in two sections, on Waterhouse Street and Little Concord Avenue. Another on Scott Street is an important link in a route that crosses a railroad line, where few other crossings are available.

The block of Scott Street shown in the photo below was made one-way many years ago to reduce the volume of through traffic on residential streets. In the year 1999 or 2000, a contraflow bike lane was added. Parking on both sides, plus a contraflow bike lane, require cyclists to travel in the "door zone" and also very close to oncoming vehicles -- and with a 30 mph (48 km/h) speed limit. This speed limit is imposed by state law; the City of Cambridge would like to have the option to set its own speed limits.

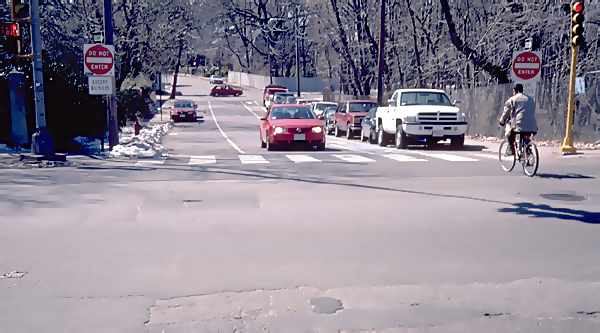

Scott Street, Cambridge, Massachusetts: contraflow bike lane
in the "door zone" adjacent to wrong way parking. It is possible that the
cyclist entered the intersection legally on a yellow signal, though
the signal is now red.



Wrong-way parking raises serious issues of human abilities, traffic theory and liability risk, because motorists who wish to enter or leave a parking spot must merge across oncoming traffic.

Entering a parking space is much like making a left turn. The driver merges to the center of the roadway (adjacent to the contraflow bike lane) and then need only look for traffic in the forward arc of vigilance to turn across the bike lane into the parking spot. As the bike lane is narrow, cyclists do have less time to anticipate and avoid a vehicle entering a parking spot than to avoid left-turning vehicles on an ordinary two-way street.

Once a vehicle is parked, the driver gets out on the curb side, reducing the likelihood of a car-door collision with a bicyclist riding in the "door zone." A passenger getting out of the car on the street side also has a relatively easy time observing oncoming cyclists, who are in the passenger's forward field of vision.

But the situation is much more difficult when a vehicle is leaving a parking space next to a contraflow bike lane. The driver must look both forward and back to yield to vehicular traffic. The driver, on the curb side of the vehicle, can not see very well if there are vehicles in adjacent parking spaces. In the photo above, the driver of the sedan in the second parking space from the corner would not see the cyclist past the tall pickup truck.

By way of contrast, a driver exiting a normal, right-side parking space is on the street side and can look back to see traffic approaching from the rear -- the only direction from which traffic in the adjacent lane may legally approach.

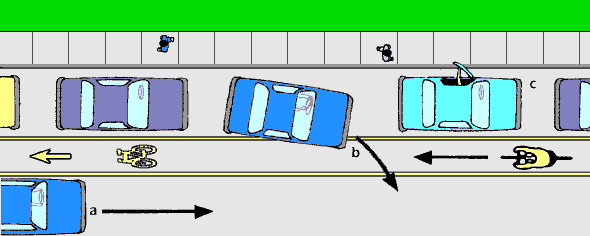

Issues with a contraflow bike lane adjacent to parking. Driver of light blue car (c)
can exit to sidewalk without opening door into bike lane, but driver of car (b),
exiting parking spot, is on curb side and may not see car (a) or the cyclist
in time to avoid a collision. Car (a) prevents the cyclist from merging out of
the bike lane to avoid car (b).



Normally, the task of a driver who is required to yield right of way is kept as simple as possible. Contraflow parking violates this principle, especially when a bike lane is crammed in next to the parked cars. The German laws, and the German installations without bike lanes, permit bicyclists to maintain a comfortable distance from parked cars and carry the implication that motorists must sometimes slow and give way to an approaching cyclist. The Scott Street lane, on the other hand, requires cyclists to run a gauntlet of cars which could exit parking spaces without warning.

I asked Cara Seiderman, Cambridge Bicycle/Pedestrian Coordinator, about the installation on Scott Street, and her answer was that parking turnover is low. Is it acceptable in traffic engineering to reduce only the statistical likelihood of a collision, without providing drivers the opportunity properly to yield right of way?

There are only 10 wrong-way parking spaces on Scott Street. Here's the photo again so you can count them. That the parking spaces were allowed to exist despite the threat they pose to public safety gives some idea of the pressure to provide parking spaces on public streets.




The American Association for the Advancement of Science has its national offices in a large tract of land behind the trees at the right side of the photo. The need for parking spaces at this location could be absorbed if the AAAS and perhaps a few local businesses provided more on-site parking for employees and visitors. But also note that in the photo, taken in mid-afternoon on a weekday, most of the parking spaces on the other side of Scott Street are empty! The empty spaces are designated for residents with parking permits, explaining why so few of them are occupied at midday.

Berkeley, California: bollards but no bike lane

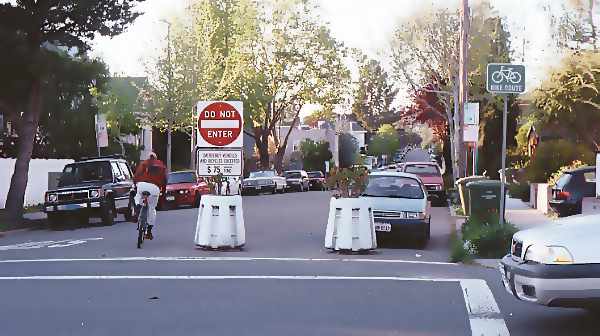

Milvia Street in Berkeley, California is a residential street which runs parallel to Shattuck Avenue, a heavily traveled arterial with narrow lanes. Milvia Street is used as a "bicycle boulevard" -- a two-way through route for cyclists on which motor traffic volume and speed are reduced by various measures. The contraflow installation on one block of Milvia Street is one of these measures. Like many German contraflow installations, the Milvia Street installation does not use a bike lane. Milvia Street also has ample width so bicyclists need not ride in the door zone. Unlike the German installations, which use only signage at intersections, the Milvia Street installation has heavy concrete bollards to prevent motor vehicles from entering at one end of the block (photos taken April, 1999).

This installation is what is called in the German literature a "false one-way street" (explanation on another Web page). Alan Forkosh comments:

I don't think that local residents would even recognize your example as a contraflow situation. While traffic cannot enter that block of Milvia, the street beyond the bollards is a two-way street (i.e., people leaving houses along that block can travel in either direction).

In Berkeley, there are several blocks on residential streets that have bollards or other barriers all the way across rather than halfway across at one end, so only bicycles can enter or exit at that end. These cul-de-sac blocks are even less like conventional one-way streets. Forkosh continues:

It is also quite common, especially in cul-de-sacs, for people to park cars on either the right or left sides of residential streets (i.e. if traffic is light, people will park in the first convenient space on either side of the street). Since people can legally enter the block on only one end, there will be a greater tendency for contraflow parking; however, I have never had a problem on such blocks with oncoming moving traffic. In addition, despite the sign, it is also common for residents to go around the bollards to shortcut to their homes.

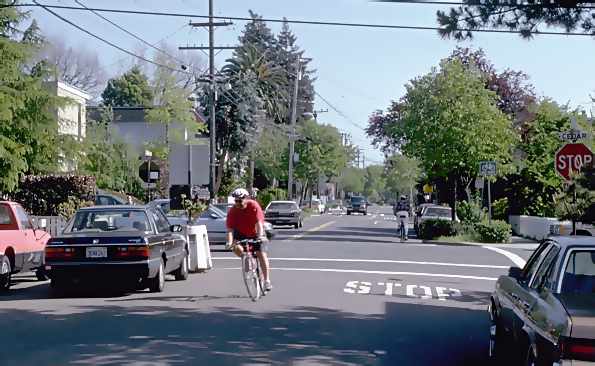

Both times I observed the Milvia Street installation, a cyclist traveling in the contraflow direction crossed to the left side of the street rather than to ride between the bollards.

In the photo above, the cyclist appears to be avoiding the car exiting the side street at the right, as well as a possible dooring from a parked car, or a collision with a car pulling out of a driveway. In the photo below, taken on a different day, the cyclist is forced to go around the bollards, because an illegally double-parked car blocks the channel between them..




Conclusions

All in all, my opinion is that "right-way" contraflow installations are a reasonable idea if carefully designed and located. They can clearly improve the convenience of bicycle travel. As Arthur Ross has pointed out, they also can reduce the risk of crashes by shortening trips and by providing a route that avoids trouble spots. But the problems illustrated in some of the examples above -- and perhaps other problems --  need to be addressed if an installation is to be successful. In many cases, the problems may be serious enough that a contraflow installation should not be considered.

Research has been conducted into the safety of the Madison, Wisconsin installation and the German installations. I don't know of any studies of the Berkeley or Cambridge installations.


Thanks to Alan Forkosh, John Schubert, Judy Murphy, Arthur Ross, Michael Rewey, Ann Freiwald, Fred Oswald and the German Cycling Federation ADFC for their contributions to this page.
